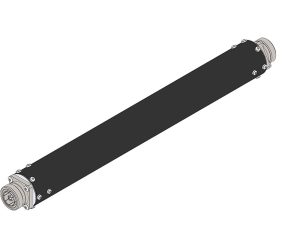

LOWPASS FILTERS

Solid state transmitters produce high frequency emissions (harmonics and frequency conversion products) which generally cannot be removed by Bandpass Filters.
COM-TECH Lowpass Filters are designed to grant out-of-band spurious rejections when used together with COM-TECH Bandpass Filters.
They feature a stepped impedance design and they are available also as Rigid-Line sections for a convenient and easy integration. LP, LC, LH Series:

  • LP Series: Rigid-Line Interface
  • LC Series: Modular Connector System
  • LH Series: ICC with Heat Sinks, Modular Connector System

FEATURES

COM-TECH Lowpass Filters are designed, engineered, and manufactured with cutting-edge technology in order to grant the maximum reliability and the most advanced performances:

  • Modular Connector System
  • ICC with Heat Sinks
  • Rigid-Line Interface
  • 10-Year Warranty

OPTIONS

COM-TECH Lowpass Filters are designed, engineered, and manufactured with cutting-edge technology in order to grant the maximum reliability and the most advanced performances:

  • Modular Connector System
  • ICC with Heat Sinks
  • Rigid-Line Interface
  • 10-Year Warranty

CODING

COM-TECH Lowpass Filters use mnemonic codes:
[Product Series: LP, LC, LH] [Coaxial Size: 39, 77…] [Cutoff Frequency: R, L, X] [Operating Band: C, B, A, F]

  • Eg. LC39RC: LC Series, 1+5/8”, UHF
  • Eg. LH77B: LH Series, 3+1/8”, VHF B.III
