FEATURES

  • DualCross: Double Cross Coupling
  • Full Band Tunability
  • Temperature Stabilization
  • DC Short
  • Output Monitor Probe
  • Modular Connector System
  • 10-Year Warranty

OPTIONS

  • Heat Sinks
  • Forced Air Cooling
  • Liquid Cooling

LINKS

  • Coding (Filters)
TC6D100R TC8D100R

TC Series: 100R

TC6D100R

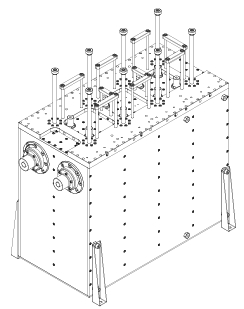

TC8D100R

No. of Poles / Cavity Size 6-Pole DualCross (DAB) / 100 mm 8-Pole DualCross (DAB) / 100 mm
Max RMS Input Power
Default
with Heat Sinks
with Liquid Cooling
Case 2 (U.M.)
680 W
850 W
2.1 kW
Case 1 (C.M.)
560 W
700 W
1.8 kW
Case 3
600 W
760 W
1.9 kW
TC6D140R TC8D140R

TC Series: 140R

TC6D140R

TC8D140R

No. of Poles / Cavity Size 6-Pole DualCross (DAB) / 140 mm 8-Pole DualCross (DAB) / 140 mm
Max RMS Input Power
Default
with Heat Sinks
with Forced Air Cooling
with Liquid Cooling
Case 2 (U.M.)
1.4 kW
1.8 kW
3.6 kW
3.2 kW
Case 1 (C.M.)
1.2 kW
1.5 kW
2.9 kW
2.6 kW
Case 3
1.3 kW
1.6 kW
3.2 kW
2.8 kW
TC6D200R TC8D200R

TC Series: 200R

TC6D200R

TC8D200R

No. of Poles / Cavity Size 6-Pole DualCross (DAB) / 200 mm 8-Pole DualCross (DAB) / 200 mm
Max RMS Input Power
Default
with Heat Sinks
with Forced Air Cooling
with Liquid Cooling
Case 2 (U.M.)
3.0 kW
3.7 kW
7.5 kW
6.4 kW
Case 1 (C.M.)
2.5 kW
3.1 kW
6.2 kW
5.3  kW
Case 3
2.7 kW
3.3 kW
6.7 kW
5.7 kW
